You can view the current settings for the ExpressKey Remote keys, Touch Ring, and Touch Ring Mode indicators (LEDs) at any time.
Select EK Remote in the Wacom Tablet Properties Device list.

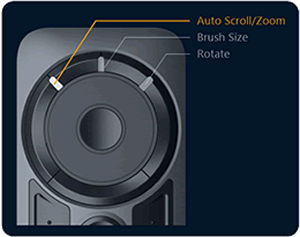

To view the Touch Ring Mode settings:
Click the Touch Ring subtab.
In the bottom left corner of the screen, click the Show touch ring setting checkbox.
Press the Toggle (center) button of the Touch Ring to view the settings.
To view the ExpressKey Remote ExpressKey and Touch Ring key settings:
Click the ExpressKeys subtab.

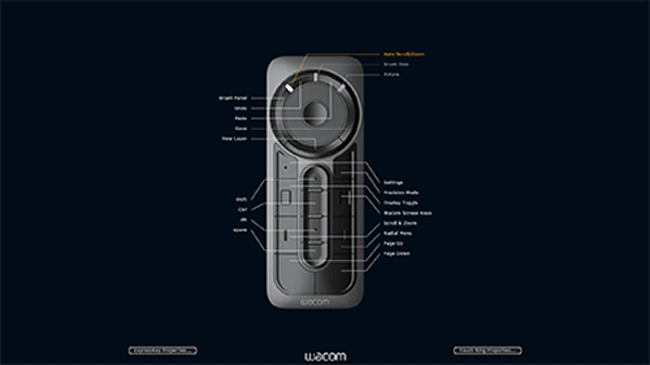

Set one of the ExpressKey Remote keys to Settings, and click that key to view all settings.
Click the key again to close the view.
Click the ExpressKey Properties... button or Touch Ring Properties... button at the bottom of the Settings screen to open the Tablet Properties to the ExpressKey Remote ExpressKeys tab, or to the ExpressKey Remote Touch Ring tab.
To disable the Settings View feature, click the Show Touch Ring setting checkbox again.
